TOFU60 3.0

The Icon, Refined

As the third evolution in the series, the Tofu60 3.0 strikes a perfect balance between heritage and innovation. Externally, it preserves the beloved minimalist contour of its predecessor, the Tofu60 2.0. Beneath the surface, however, the internal architecture has been meticulously reimagined. The Tofu60 3.0 is more than just a new design attempt; it is the definitive continuation of a classic.

Case Design

Craftsmanship & Finish
Expertly crafted, the Tofu60 3.0 case comes in two premium finishes. Choose the silky-smooth feel of sandblasted anodized aluminum or the fine, matte texture of our rich E-coating. Both perfectly highlight the case's clean, sculpted lines.

Structural Integrity
Internally, the Tofu60 3.0 carries forward the minimalist design heritage of the TOFU family while introducing a versatile dual-mounting system. This allows users to choose between a classic TOP Mount for a firm, responsive feel, or a PCB Gasket Mount for a softer, more flexible typing experience, catering to diverse preferences.

Visual Language
Visually, the Tofu60 3.0 introduces a bold design language. The bottom case features an exposed rear accent, splitting the USB port face into two distinct sections. This innovative construction enables striking two-tone color combinations, both immediately captivating and enduringly timeless.

Integrated Force Break System
The design includes custom-molded Force Break silicone pads. These pads create a buffer between case components, effectively dampening case vibration and eliminating unwanted metallic "ping," ensuring a cleaner sound.

Specs

Top case material: Aluminum (anodized/e-coating/RAW)
Bottom case material: Aluminum/Copper/Stainless Steel (anodized/e-coating/RAW/textured/Sandblasted)
Mounting style: Top Mount/PCB Gasket
PCB: 1.6mm, 4 options, solder/wired hotswap/Dual-mode hotswap/HE
Plate: Alu/Carbon fiber/PC/PEI/FR4 Plate
Typing angle: 9 degree
Weight bar: Aluminum, Stainless Steel, and Copper
Designer: Wei

What's included

Top case x1
Bottom case x1
Optional weight bars x2
Silicone gasket x1 set
Rubber feet x1 set
PCB x1
Daughterboard x1
Optional foam kit x1 set
Battery compartment foam kit x1 set
Optional plate x1
Carrying case x1

Vendor

KR: Geonworks
UK: Mechmods
FR: Keycapsule
SG: Ktechs
US: Divinikey
AU: Soupkeys
TH: Aiglatson Studio
NORD: Maxgaming
DE: Monacokeys
ES: EloquentClicks
VN: Soigear/MOKB
CA: Keybaytech
JP: yushakobo

Update

Extra in stock will be available for sale by the end of June. (Updated on 06/04/2026)
Production complete. Currently in the final assembly phase. Shipping is estimated to commence at the end of May. (Updated on 05/18/2026)
Update on 04/08/2026
- Top Case: 49% received
- Bottom Case: 14% received
- Texture bottom case: 66% received
Design Optimization and Special Gift (Updated on 1/22/2026)

1. Gasket Mount Optimization
We have optimized the gasket installation method by moving the gaskets from the plate to the top case, which simplifies the assembly process.

2. Special Thank-You Gift
To show our appreciation, every customer who purchases the kit will receive a 1/20 scale miniature model of the Tofu60 (random color) as a gift, which will be shipped together with your order.

Pre-order date: Dec 30th, 2025 to Jan 30th, 2026
ETA: Q2, 2026

Videos

Mounting Style

PCB Gasket mount

Engineered for Softness
Following a similar support distribution as the TOP Mount, the PCB Gasket is designed to provide a maximally soft, bouncy, and flexible typing experience.

Plateless Build Potential
Combine this mount with the solderable PCB to assemble your board without a plate. This "plateless" configuration is the ultimate choice for achieving maximum flex and a unique, deep sound profile.

Top mount

Optimized TOP Mount Structure
To minimize resonance and hollowness, the mounting points for the TOP structure are strategically placed to avoid the spacebar area. This results in a more uniform and satisfying sound signature.

~~Plate-Mount~~ Top Case Mount

Silicone Dampeners
Silicone dampeners provide complete physical decoupling of the positioning plate from the upper housing. This design mitigates resonance conduction at its origin, significantly reducing structural noise.

Top case mount method is easier to install.

Force Break Mod

Includes 4 Teflon pads to decouple case sections, effectively killing resonance and metallic ping at the source.

Exploded View

How to Customize Your TOFU60 3.0

Step 1: Launch the Configurator

Go to our live configurator at https://kbd.tools/. Once there, select "TOFU60 " from the "Select Keyboard Model" dropdown menu.

8Step 2: Design Your Build

Explore all the configuration options and customize your keyboard to your personal preference. You can freely choose your:

Top Case & Bottom Case
Weight (Aluminum, stainless steel, Copper)
PCB (Hotswap, Daul-mode Hotswap, Solder and HE)
Plate (Carbon Fiber, Polycarbonate, Aluminum, FR4, PEI)
Foam Kit
Wrist Rest

As you make your selections, the configurator will provide a live preview of your color combination, along with the updated total weight and price.

Step 3: Finalize Your Order

Once you have finalized your design in the configurator, return to this product page. Select the exact same options from the dropdown menus here,

then add the item to your cart and complete your order.

Keyboard Parts

Top Case

Bottom Case

Weight Bar

Copper

Stainless Steel

Aluminum

Plate

Wrist Rest

Foam kit

PCB Options

Wired PCB (Solder & Hot-Swap)

Dive into deep customization with support for AVA, VIAL, and VIA. The solder version also allows for a unique plateless build option.

1.6mm thickness
FR4 material
Solder version/ Hotswap version
Magnetic connector PCB
Json file：ydkb_kbdfans_tofu60_3_0_via.json
Firmware: ydkb_kbdfans_tofu60_3_0_vial.uf2

Dual-Mode PCB

Experience the freedom of wireless with our first-ever dual-mode board powered by ZMK. Its ultra-low power consumption delivers an incredible 6+ months of battery life from a single 1000mAh battery.

1.6mm thickness
FR4 material
Hotswap version
Magnetic connector PCB

HE (Magnetic) PCB

Engineered for victory. We've partnered with NNKS to create a next-gen Hall Effect PCB focused on what matters most: ultra-low latency.

New Daisy-Chain Architecture: Reduces input delay.
Stable 0.01mm Resolution: Precision where it counts.
Web-Based Configurator: Easy, on-the-fly adjustments.
Continuous Firmware Updates: Always stay ahead of the curve.

Layout Support

Wired PCB and Dual-mode PCB layout

HE（Magnetic） PCB layout

Only works for WK Case

Dimensions

Real Pictures

Render Pictures

FAQs

What is the latency for the wired and dual-mode PCBs? Is the dual-mode latency significant?

The latency is 1.25ms for MX-style switches and 0.125ms for magnetic switches. As expected, the latency in dual-mode (wireless) will be slightly higher than in single-mode (wired).

Can I request a different color after making a purchase?

This pre-order is for our standard color options. However, we also offer a paid upgrade service for custom colors.
Custom color options are a pre-sale exclusive. They will not be available for the Tofu60 3.0 project after the pre-sale ends.

Will a half-plate made of Aluminum be available in the future?

Yes, that's possible.

Will the design files be made public?

Yes, the design files (for the plate and battery filler) will be released for download after the Pre-order is completed.

Do you offer custom colors for the texture?

Yes, It's available

Can magnetic switches be used with a gasket mount ?

Yes. Our magnetic switch solution supports an adjustable actuation point with 0.01mm increments. While technically it can go lower, 0.01mm is a stable and practical value that represents the physical limit of what most people can perceive. Smaller increments would only create inconvenience when configuring in the software.

Do the magnetic switches support an 8K polling rate?

Yes, it is a true 8K polling rate. However, considering the varying quality of switches on the market, we have added an option to change the polling rate in the top-right corner of the configurator website. If you are using lower-quality magnetic switches, you can switch to a lower polling rate to calibrate and improve performance.

Why is there only a dual-mode (Wired + Bluetooth) version and not a tri-mode (Wired + Bluetooth + 2.4G) version?

Our current firmware is based on an open-source solution that does not include a 2.4G wireless component. We believe dual-mode meets the needs of the vast majority of users. Furthermore, this keyboard features an ultra-low-power design, making it exceptionally energy-efficient. (From personal experience, I often lose the 2.4G dongles anyway.)

QC Standard

Upon receipt, the casing is considered acceptable if all six external surfaces (top, bottom, left, right, front, and back) are free from machining marks, stains, dents, and pinholes, and do not have any black dots larger than 1mm or scratches longer than 1mm.
The copper weight is considered acceptable if it does not have any black dots, pinholes, or blemishes larger than 1mm, and no scratches longer than 2mm.
Flaws and manufacturing artifacts that do not affect the overall external appearance are considered reasonable. This includes, but is not limited to: minor blemishes around screw holes, uneven internal coating, hook marks (from anodizing/painting) where the base color is exposed, and water marks, tool marks, or scratches on internal surfaces. Purchasing this product means you accept these terms.
Due to the significant weight difference between the top and bottom case parts, there may be slight color variations even when the same color is chosen for both.
Standards for RAW Finish
The RAW version is unanodized and uncoated. It preserves the original look of the machined metal, including natural tool marks.

Acceptable Quality Standards (Not covered by warranty):
1. Minor scratches, tool paths, and small speck-like imperfections.
2. Variations in surface reflection or slight dark spots on the raw metal.

(RAW products are not sold as "flawless." By purchasing, you acknowledge and accept the inherent characteristics of this manufacturing process.)

Click here for Tofu60 3.0 | Custom Color Edition

TOFU60 3.0

The Icon, Refined

As the third evolution in the series, the Tofu60 3.0 strikes a perfect balance between heritage and innovation. Externally, it preserves the beloved minimalist contour of its predecessor, the Tofu60 2.0. Beneath the surface, however, the internal architecture has been meticulously reimagined. The Tofu60 3.0 is more than just a new design attempt; it is the definitive continuation of a classic.

Case Design

Craftsmanship & Finish
Expertly crafted, the Tofu60 3.0 case comes in two premium finishes. Choose the silky-smooth feel of sandblasted anodized aluminum or the fine, matte texture of our rich E-coating. Both perfectly highlight the case's clean, sculpted lines.

Structural Integrity
Internally, the Tofu60 3.0 carries forward the minimalist design heritage of the TOFU family while introducing a versatile dual-mounting system. This allows users to choose between a classic TOP Mount for a firm, responsive feel, or a PCB Gasket Mount for a softer, more flexible typing experience, catering to diverse preferences.

Visual Language
Visually, the Tofu60 3.0 introduces a bold design language. The bottom case features an exposed rear accent, splitting the USB port face into two distinct sections. This innovative construction enables striking two-tone color combinations, both immediately captivating and enduringly timeless.

Integrated Force Break System
The design includes custom-molded Force Break silicone pads. These pads create a buffer between case components, effectively dampening case vibration and eliminating unwanted metallic "ping," ensuring a cleaner sound.

Specs

Top case material: Aluminum (anodized/e-coating/RAW)
Bottom case material: Aluminum/Copper/Stainless Steel (anodized/e-coating/RAW/textured/Sandblasted)
Mounting style: Top Mount/PCB Gasket
PCB: 1.6mm, 4 options, solder/wired hotswap/Dual-mode hotswap/HE
Plate: Alu/Carbon fiber/PC/PEI/FR4 Plate
Typing angle: 9 degree
Weight bar: Aluminum, Stainless Steel, and Copper
Designer: Wei

Vendor

KR: Geonworks
UK: Mechmods
FR: Keycapsule
SG: Ktechs
US: Divinikey
AU: Soupkeys
TH: Aiglatson Studio
NORD: Maxgaming
DE: Monacokeys
ES: EloquentClicks
VN: Soigear/ MOKB
CA: Keybaytech
JP: yushakobo

What's included

Top case x1
Bottom case x1
Optional weight bars x2
Silicone gasket x1 set
Rubber feet x1 set
PCB x1
Daughterboard x1
Optional foam kit x1 set
Battery compartment foam kit x1 set
Optional plate x1
Carrying case x1

Update

Extra in stock will be available for sale by the end of June. (Updated on 06/04/2026)
Production complete. Currently in the final assembly phase. Shipping is estimated to commence at the end of May. (Updated on 05/18/2026)
Update on 04/08/2026
- Top Case: 49% received
- Bottom Case: 14% received
- Texture bottom case: 66% received
Design Optimization and Special Gift (Updated on 1/22/2026)

1. Gasket Mount Optimization
We have optimized the gasket installation method by moving the gaskets from the plate to the top case, which simplifies the assembly process.

2. Special Thank-You Gift
To show our appreciation, every customer who purchases the kit will receive a 1/20 scale miniature model of the Tofu60 (random color) as a gift, which will be shipped together with your order.
Pre-order date: Dec 30th, 2025 to Jan 30th, 2026
ETA: Q2, 2026

Videos

Mounting Style

PCB Gasket mount

Engineered for Softness
Following a similar support distribution as the TOP Mount, the PCB Gasket is designed to provide a maximally soft, bouncy, and flexible typing experience.

Top mount

~~Plate-Mount~~ Top Case Mount Silicone Dampeners
Silicone dampeners provide complete physical decoupling of the positioning plate from the upper housing. This design mitigates resonance conduction at its origin, significantly reducing structural noise. Top case mount method is easier to install.

Force Break Mod

Includes 4 Teflon pads to decouple case sections, effectively killing resonance and metallic ping at the source.

Exploded View

How to Customize Your TOFU60 3.0

Step 1: Launch the Configurator

Go to our live configurator at https://kbd.tools/. Once there, select "TOFU60 " from the "Select Keyboard Model" dropdown menu.

8Step 2: Design Your Build

Explore all the configuration options and customize your keyboard to your personal preference. You can freely choose your:

Top Case & Bottom Case
Weight (Aluminum, stainless steel, Copper)
PCB (Hotswap, Daul-mode Hotswap, Solder and HE)
Plate (Carbon Fiber, Polycarbonate, Aluminum, FR4, PEI)
Foam Kit
Wrist Rest

As you make your selections, the configurator will provide a live preview of your color combination, along with the updated total weight and price.

Step 3: Finalize Your Order

Once you have finalized your design in the configurator, return to this product page. Select the exact same options from the dropdown menus here,

then add the item to your cart and complete your order.

Keyboard Parts

Top Case

Bottom Case

Weight Bar

Copper

Stainless Steel

Aluminum

Plate

Wrist Rest

foam Kit

PCB Options

Wired PCB (Solder & Hot-Swap)

Dive into deep customization with support for AVA, VIAL, and VIA. The solder version also allows for a unique plateless build option.

1.6mm thickness
FR4 material
Solder version/ Hotswap version
Magnetic connector PCB
Json file：ydkb_kbdfans_tofu60_3_0_via.json
Firmware: ydkb_kbdfans_tofu60_3_0_vial.uf2

Dual-Mode PCB

Experience the freedom of wireless with our first-ever dual-mode board powered by ZMK. Its ultra-low power consumption delivers an incredible 6+ months of battery life from a single 1000mAh battery.

1.6mm thickness
FR4 material
Hotswap version
Magnetic connector PCB

HE (Magnetic) PCB

Engineered for victory. We've partnered with NNKS to create a next-gen Hall Effect PCB focused on what matters most: ultra-low latency.

New Daisy-Chain Architecture: Reduces input delay.
Stable 0.01mm Resolution: Precision where it counts.
Web-Based Configurator: Easy, on-the-fly adjustments.
Continuous Firmware Updates: Always stay ahead of the curve.

Layout Support

Wired PCB and Dual-mode PCB layout

HE（Magnetic） PCB layout

Only works for WK Case

Dimensions

Real Pictures

Render Pictures

FAQs

What is the latency for the wired and dual-mode PCBs? Is the dual-mode latency significant?

The latency is 1.25ms for MX-style switches and 0.125ms for magnetic switches. As expected, the latency in dual-mode (wireless) will be slightly higher than in single-mode (wired).

Can I request a different color after making a purchase?

Will a half-plate made of aluminum be available in the future?

Yes, that's possible.

Will the design files be made public?

Yes, the design files (for the plate and battery filler) will be released for download after the Pre-order is completed.

Do you offer custom colors for the texture?

Yes, It's available

Can magnetic switches be used with a gasket mount?

Do the magnetic switches support an 8K polling rate?

Why is there only a dual-mode (Wired + Bluetooth) version and not a tri-mode (Wired + Bluetooth + 2.4G) version?

QC Standard

Upon receipt, the casing is considered acceptable if all six external surfaces (top, bottom, left, right, front, and back) are free from machining marks, stains, dents, and pinholes, and do not have any black dots larger than 1mm or scratches longer than 1mm.
The copper weight is considered acceptable if it does not have any black dots, pinholes, or blemishes larger than 1mm, and no scratches longer than 2mm.
Flaws and manufacturing artifacts that do not affect the overall external appearance are considered reasonable. This includes, but is not limited to: minor blemishes around screw holes, uneven internal coating, hook marks (from anodizing/painting) where the base color is exposed, and water marks, tool marks, or scratches on internal surfaces. Purchasing this product means you accept these terms.
Due to the significant weight difference between the top and bottom case parts, there may be slight color variations even when the same color is chosen for both.
Standards for RAW Finish
The RAW version is unanodized and uncoated. It preserves the original look of the machined metal, including natural tool marks.

Acceptable Quality Standards (Not covered by warranty):
1. Minor scratches, tool paths, and small speck-like imperfections.
2. Variations in surface reflection or slight dark spots on the raw metal.

(RAW products are not sold as "flawless." By purchasing, you acknowledge and accept the inherent characteristics of this manufacturing process.)

Click here for Tofu60 3.0 | Custom Color Edition

TOFU60 3.0

Case Design

Craftsmanship & FinishExpertly crafted, the Tofu60 3.0 case comes in two premium finishes. Choose the silky-smooth feel of sandblasted anodized aluminum or the fine, matte texture of our rich E-coating. Both perfectly highlight the case's clean, sculpted lines.

Integrated Force Break SystemThe design includes custom-molded Force Break silicone pads. These pads create a buffer between case components, effectively dampening case vibration and eliminating unwanted metallic "ping," ensuring a cleaner sound.

Specs

What's included

Vendor

Update

Videos

Mounting Style

Exploded View

How to Customize Your TOFU60 3.0

Step 1: Launch the Configurator

8Step 2: Design Your Build

Step 3: Finalize Your Order

Keyboard Parts

Top Case

Bottom Case

Weight Bar

Copper

Stainless Steel

Aluminum

Plate

Wrist Rest

Foam kit

PCB Options

Layout Support

Dimensions

Real Pictures

Render Pictures

FAQs

What is the latency for the wired and dual-mode PCBs? Is the dual-mode latency significant?

Can I request a different color after making a purchase?

Will a half-plate made of Aluminum be available in the future?

Will the design files be made public?

Do you offer custom colors for the texture?

Can magnetic switches be used with a gasket mount ?

Do the magnetic switches support an 8K polling rate?

Why is there only a dual-mode (Wired + Bluetooth) version and not a tri-mode (Wired + Bluetooth + 2.4G) version?

QC Standard

TOFU60 3.0

Case Design

Craftsmanship & FinishExpertly crafted, the Tofu60 3.0 case comes in two premium finishes. Choose the silky-smooth feel of sandblasted anodized aluminum or the fine, matte texture of our rich E-coating. Both perfectly highlight the case's clean, sculpted lines.

Integrated Force Break SystemThe design includes custom-molded Force Break silicone pads. These pads create a buffer between case components, effectively dampening case vibration and eliminating unwanted metallic "ping," ensuring a cleaner sound.

Specs

Vendor

What's included

Update

Videos

Mounting Style

Exploded View

How to Customize Your TOFU60 3.0

Step 1: Launch the Configurator

8Step 2: Design Your Build

Step 3: Finalize Your Order

Keyboard Parts

Top Case

Bottom Case

Weight Bar

Copper

Stainless Steel

Aluminum

Plate

Wrist Rest

foam Kit

PCB Options

Layout Support

Dimensions

Real Pictures

Render Pictures

FAQs

What is the latency for the wired and dual-mode PCBs? Is the dual-mode latency significant?

Can I request a different color after making a purchase?

Will a half-plate made of aluminum be available in the future?

Will the design files be made public?

Do you offer custom colors for the texture?

Can magnetic switches be used with a gasket mount?

Do the magnetic switches support an 8K polling rate?

Why is there only a dual-mode (Wired + Bluetooth) version and not a tri-mode (Wired + Bluetooth + 2.4G) version?

QC Standard

Craftsmanship & Finish
Expertly crafted, the Tofu60 3.0 case comes in two premium finishes. Choose the silky-smooth feel of sandblasted anodized aluminum or the fine, matte texture of our rich E-coating. Both perfectly highlight the case's clean, sculpted lines.

Integrated Force Break System
The design includes custom-molded Force Break silicone pads. These pads create a buffer between case components, effectively dampening case vibration and eliminating unwanted metallic "ping," ensuring a cleaner sound.

Craftsmanship & Finish
Expertly crafted, the Tofu60 3.0 case comes in two premium finishes. Choose the silky-smooth feel of sandblasted anodized aluminum or the fine, matte texture of our rich E-coating. Both perfectly highlight the case's clean, sculpted lines.

Integrated Force Break System
The design includes custom-molded Force Break silicone pads. These pads create a buffer between case components, effectively dampening case vibration and eliminating unwanted metallic "ping," ensuring a cleaner sound.

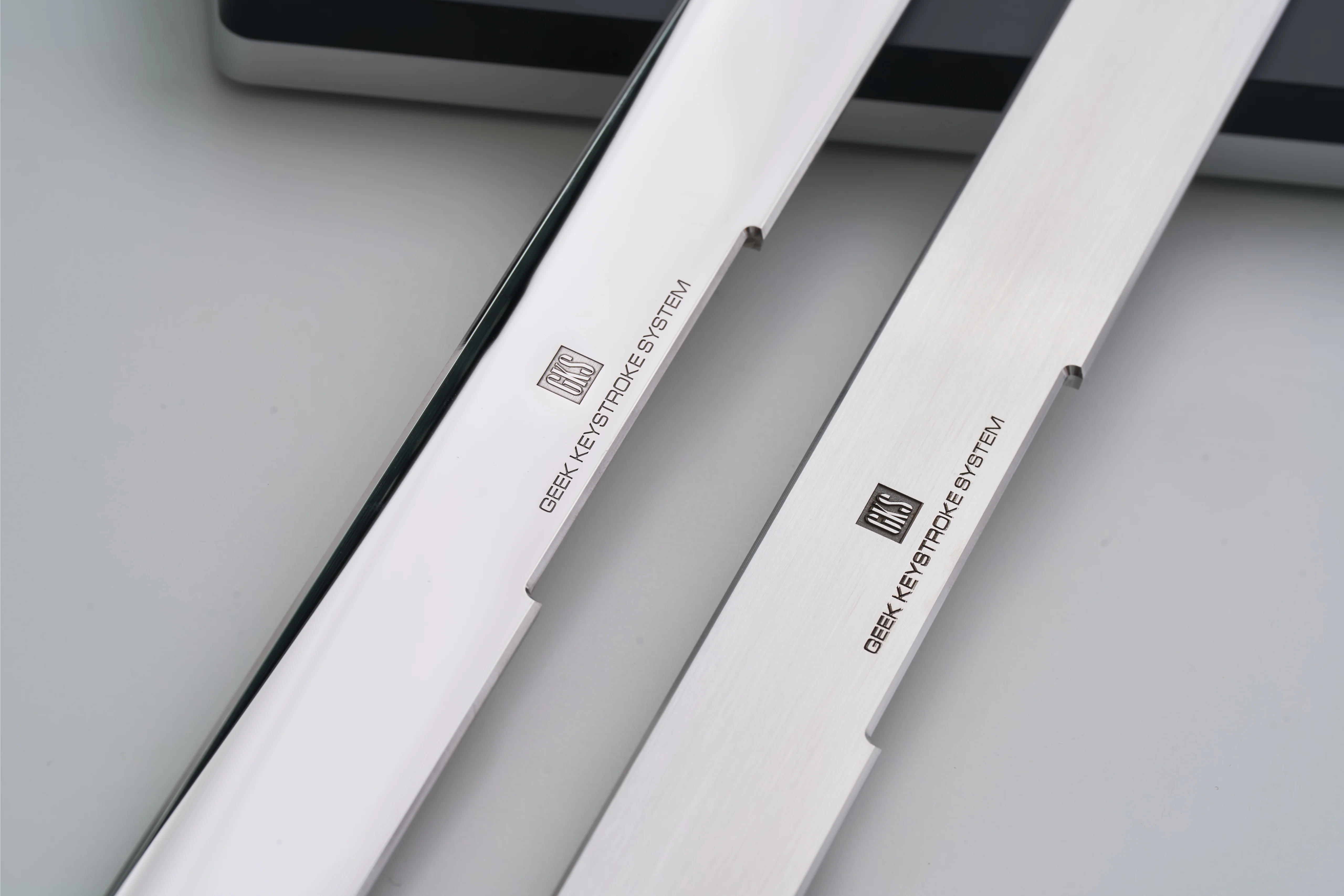

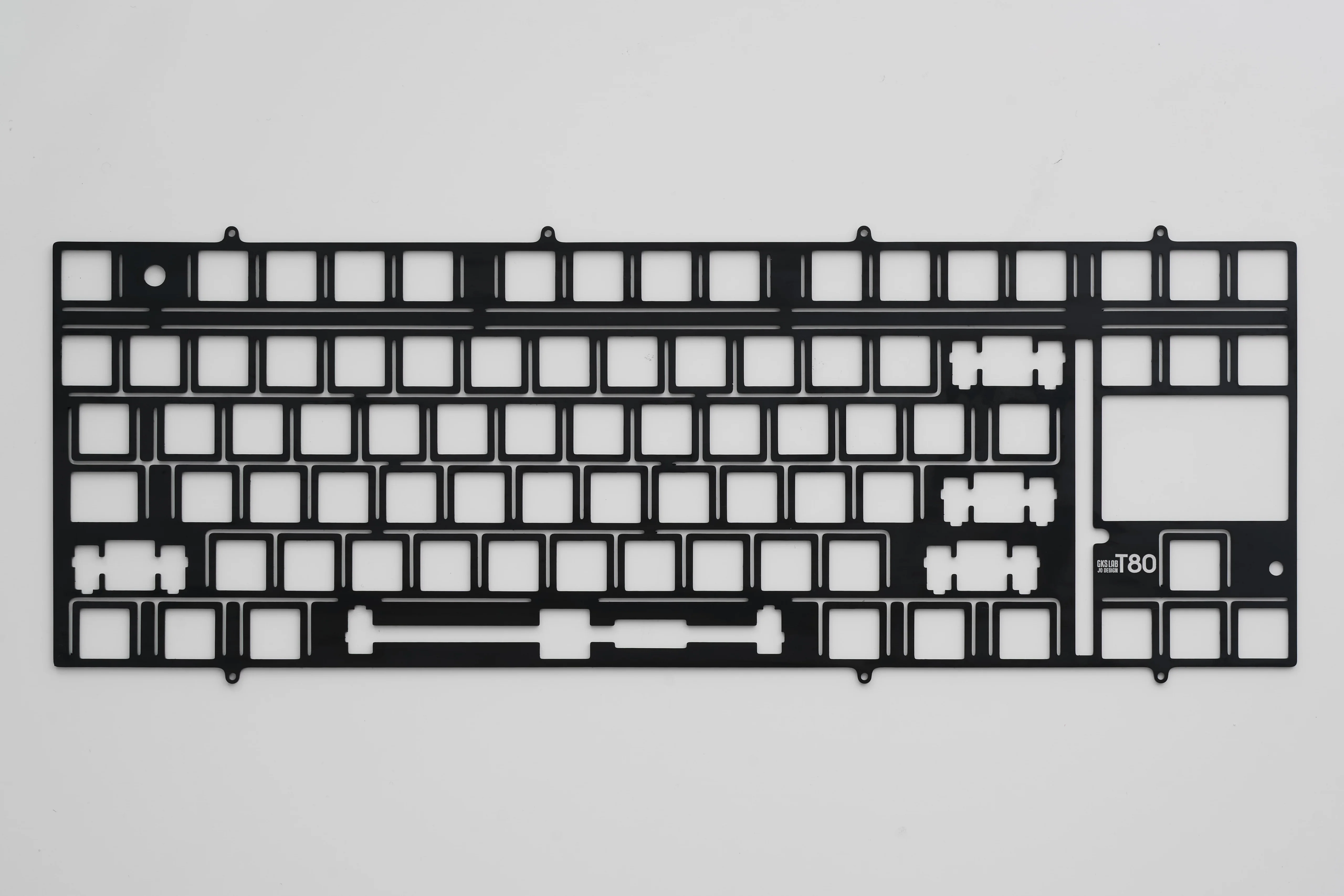

TECH80 upgrade

Product Information

Shipping & Returns

You may also like

You may also like
