Engineered for a Divine Typing Experience

Beneath its striking exterior, the Athena 1800 is built with the discerning enthusiast in mind, offering a choice of premium typing experiences.

\n
\n
\n

Top Mount
For a classic, firm, and direct typing feel with consistent feedback. Favored by those who appreciate a traditional, responsive typing experience and sound.

\n
\n
\n

PCB Silicone Gasket
Delivering a softer, more cushioned, and acoustically refined typing sensation. This mount isolates the PCB, providing a gentler bottom-out and a more muted, thocky sound profile.

\n
\n

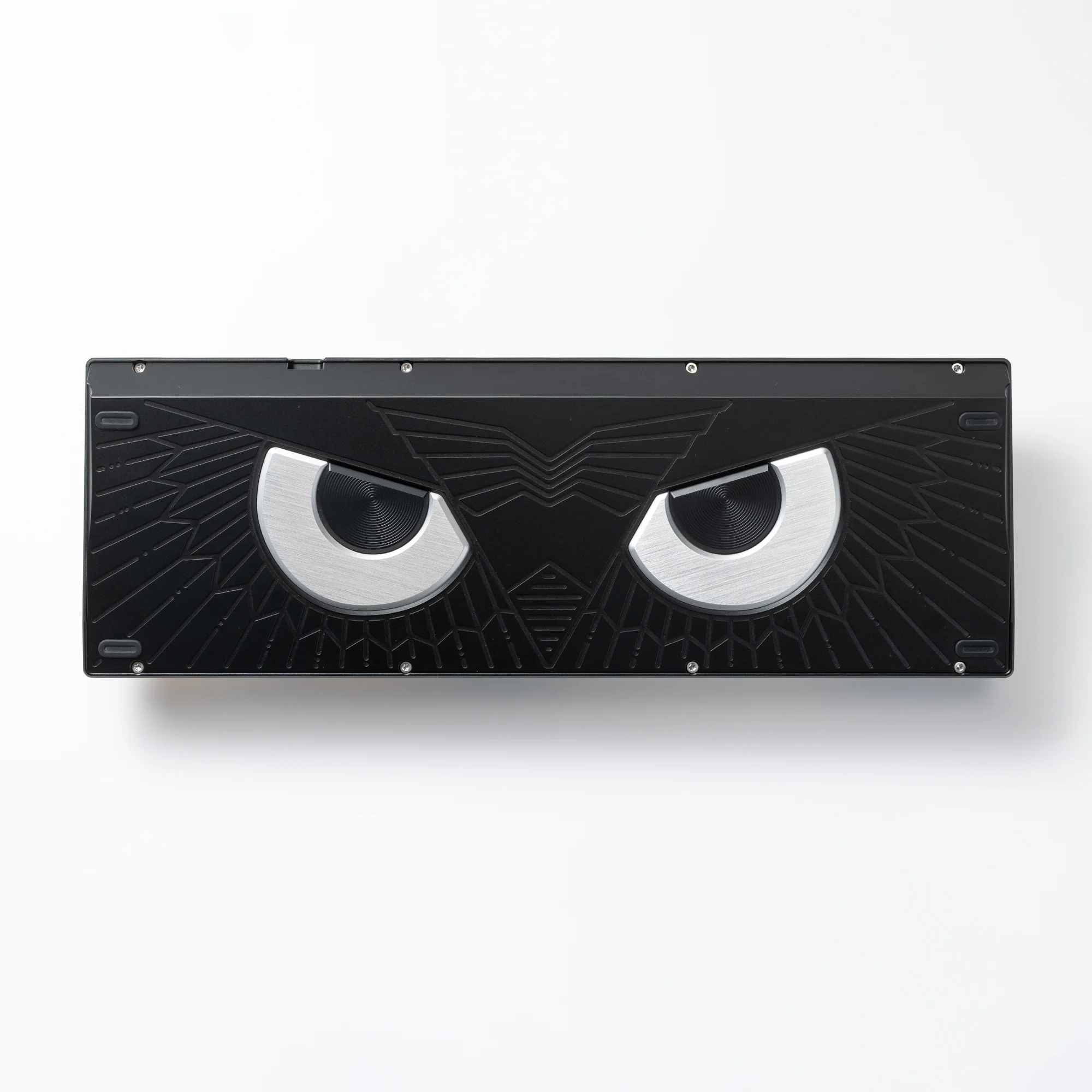

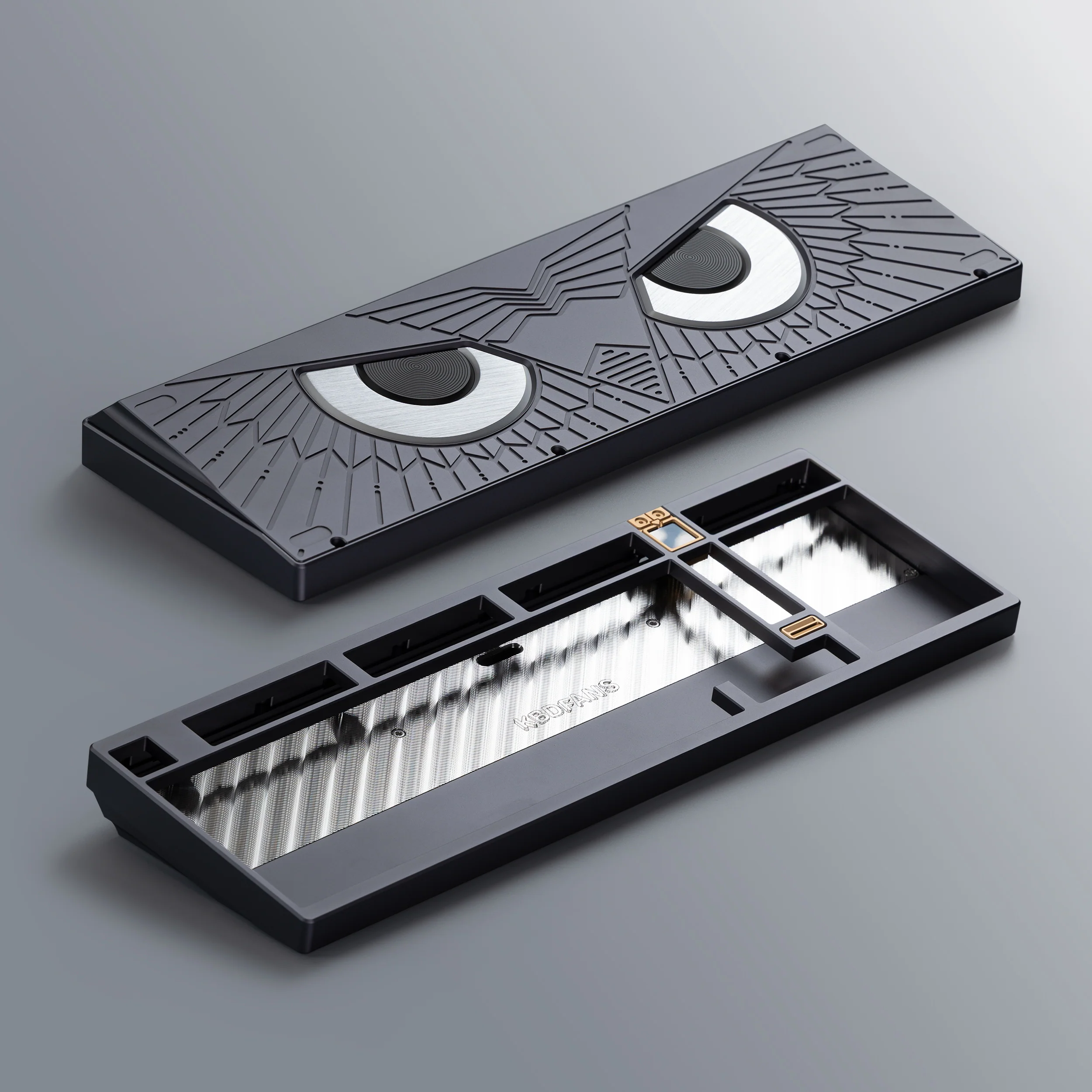

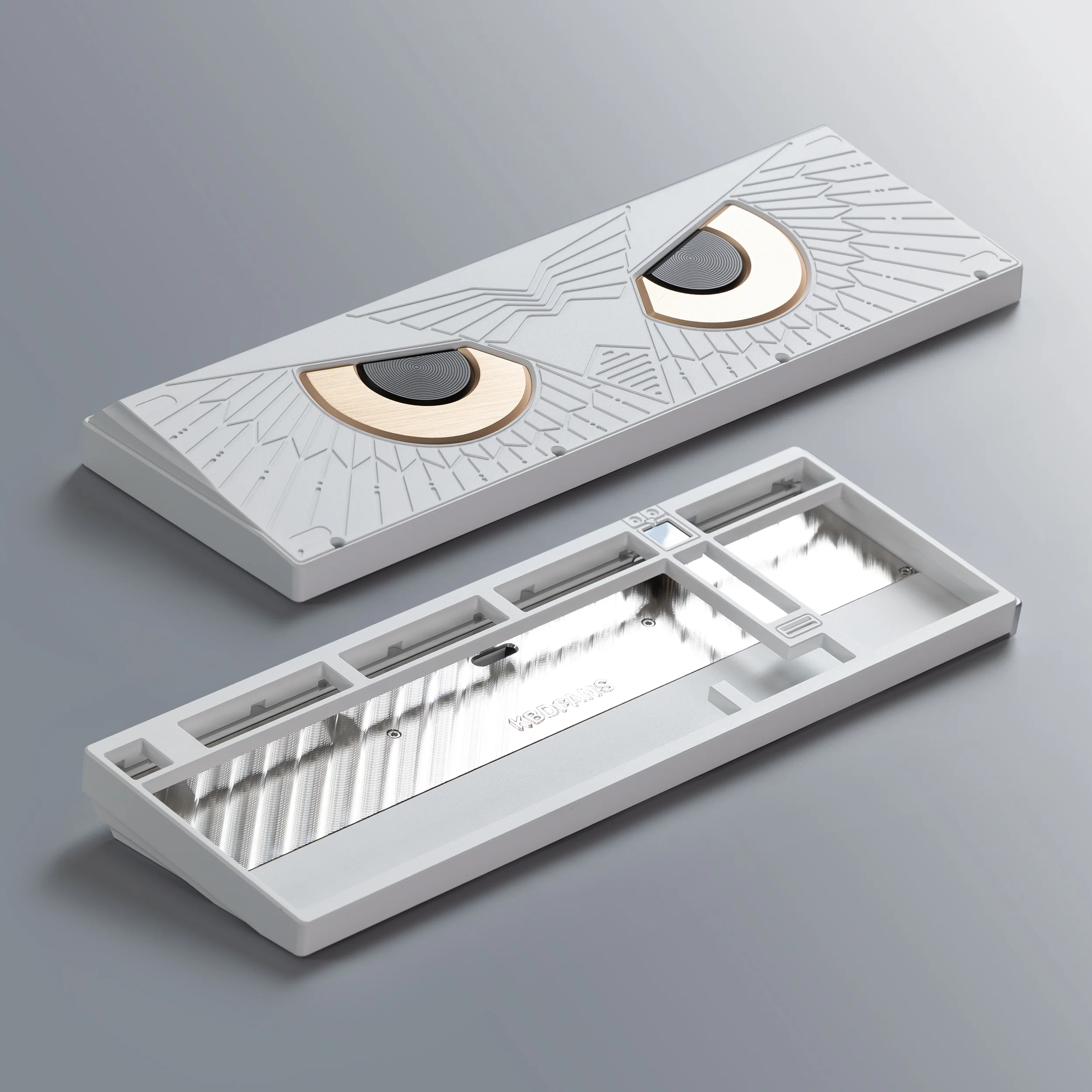

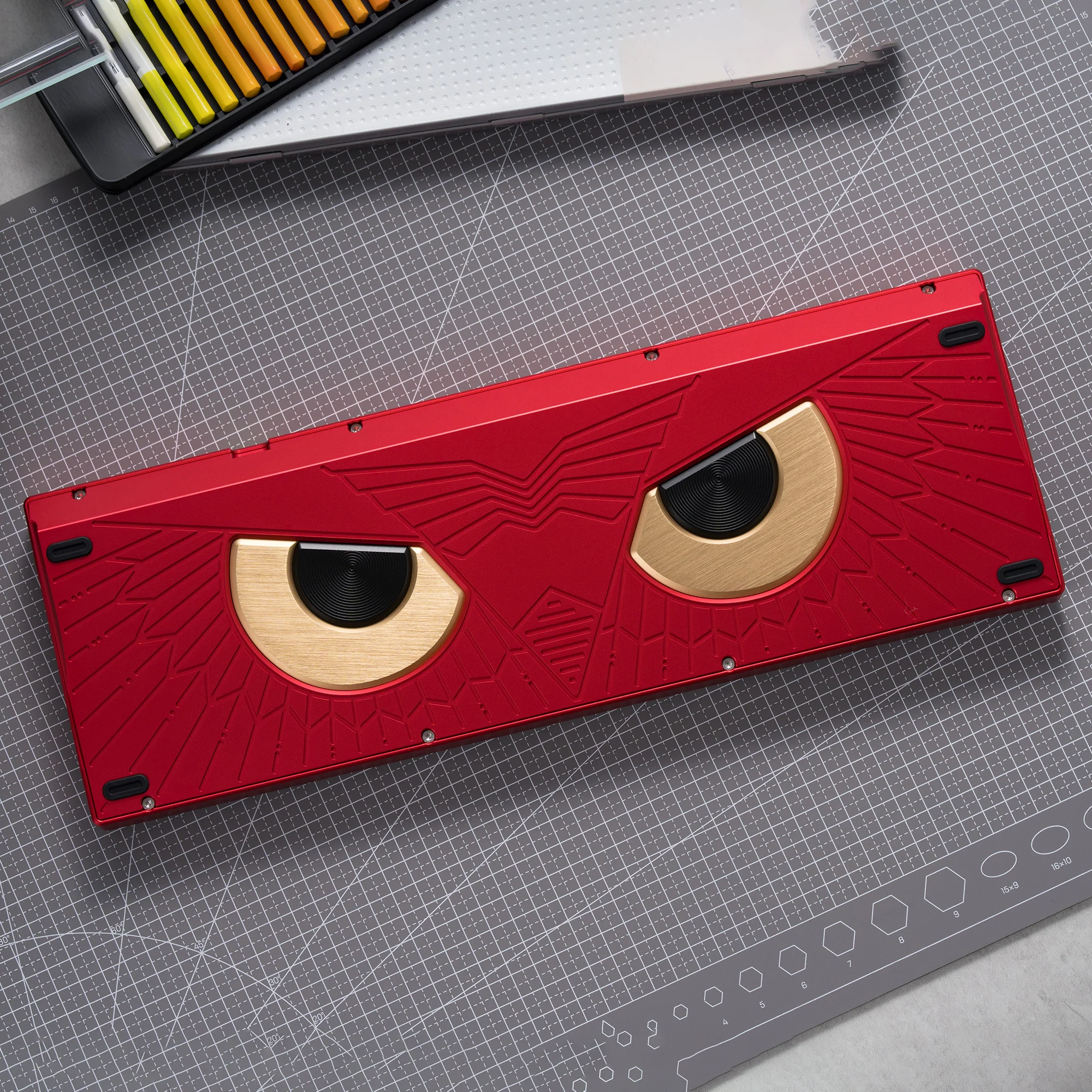

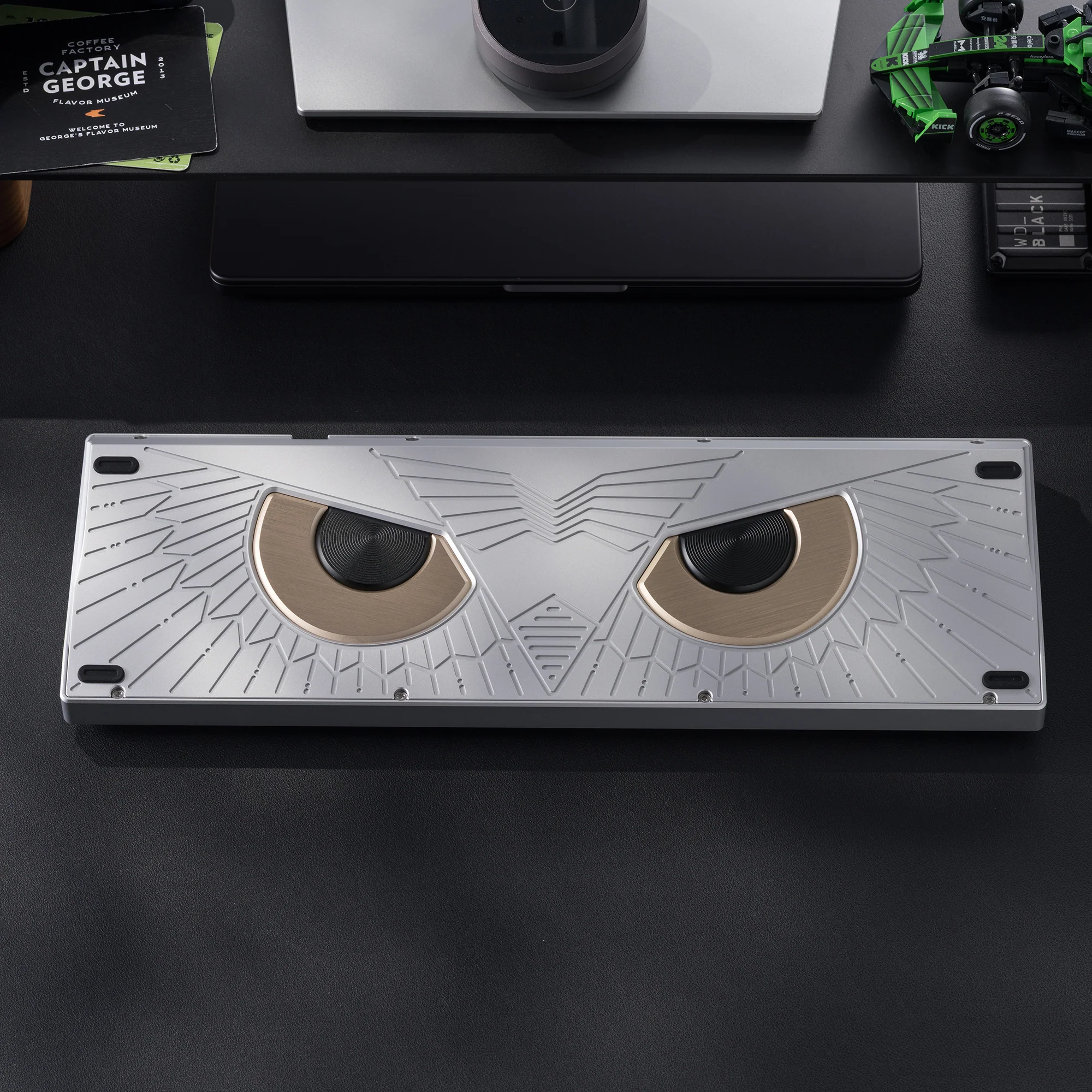

Internal Cover plate and rectangular Weight bar
Cover plate material options: Stainless Steel / Brass / Carbon Fiber

Internal Design: Each version comes standard with a stainless steel internal weight bar.
This design not only provides a substantial, premium typing feel but also offers a diverse range of unique acoustic profiles.
The stainless steel version, in particular, features exquisite \"toolpath\" engravings—a finely machined texture on its interior.
This hidden detail is a testament to a meticulous commitment to quality and a unified aesthetic throughout the entire build.
\n
\n
\n
\n
\n
Exploded View

\n
\n
\n
Layout

\n
\n
\n
\n
Specs：

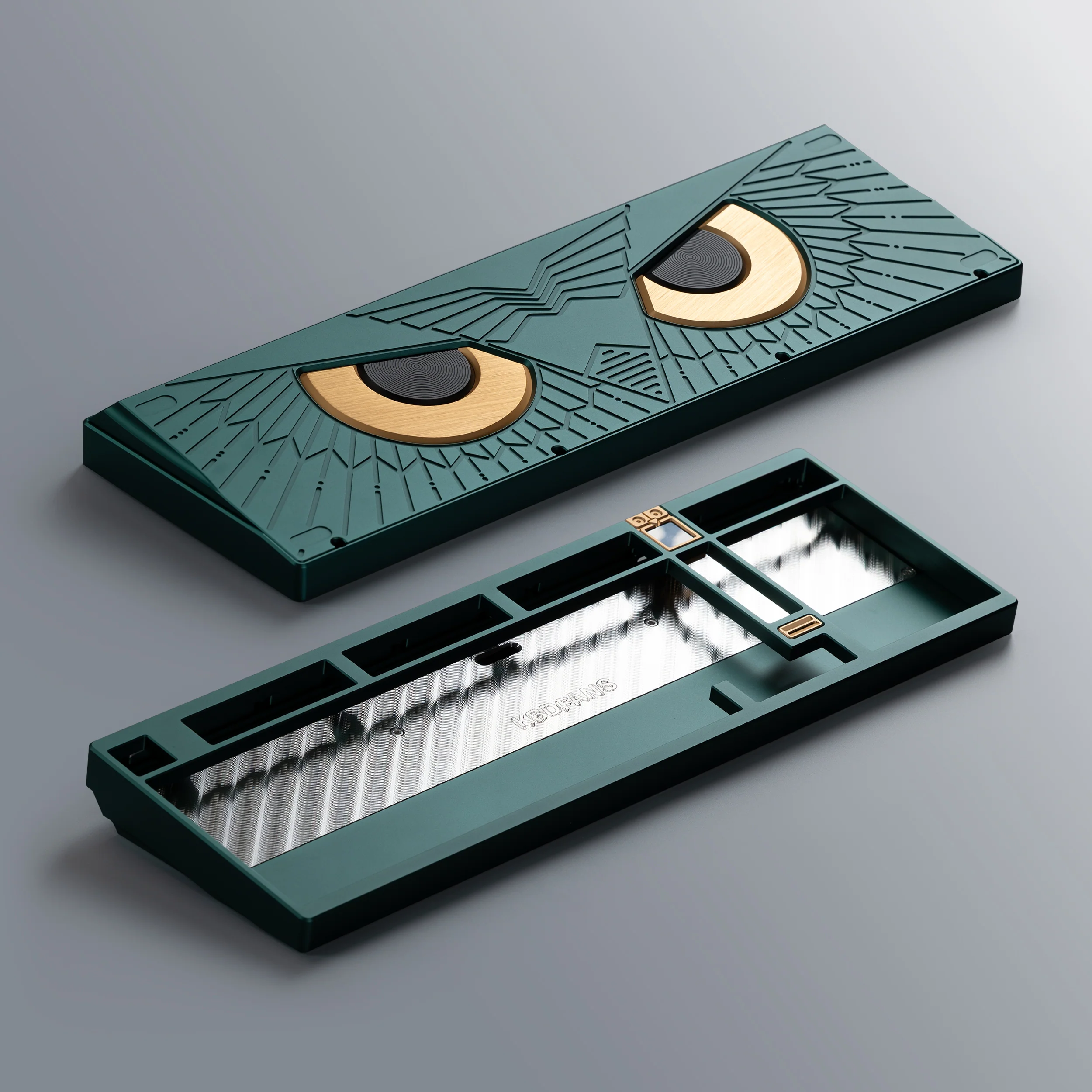

  • Case material: Aluminum (anodized/e-coating)
  • Mounting style: Top Mount/PCB Silicone Gasket
  • PCB: 1.6mm solder/ hotswap PCB, non flex-cut, USB-C interface, VIAL supported, includes Caps Lock key/Scroll Lock key RGB LCD indicator

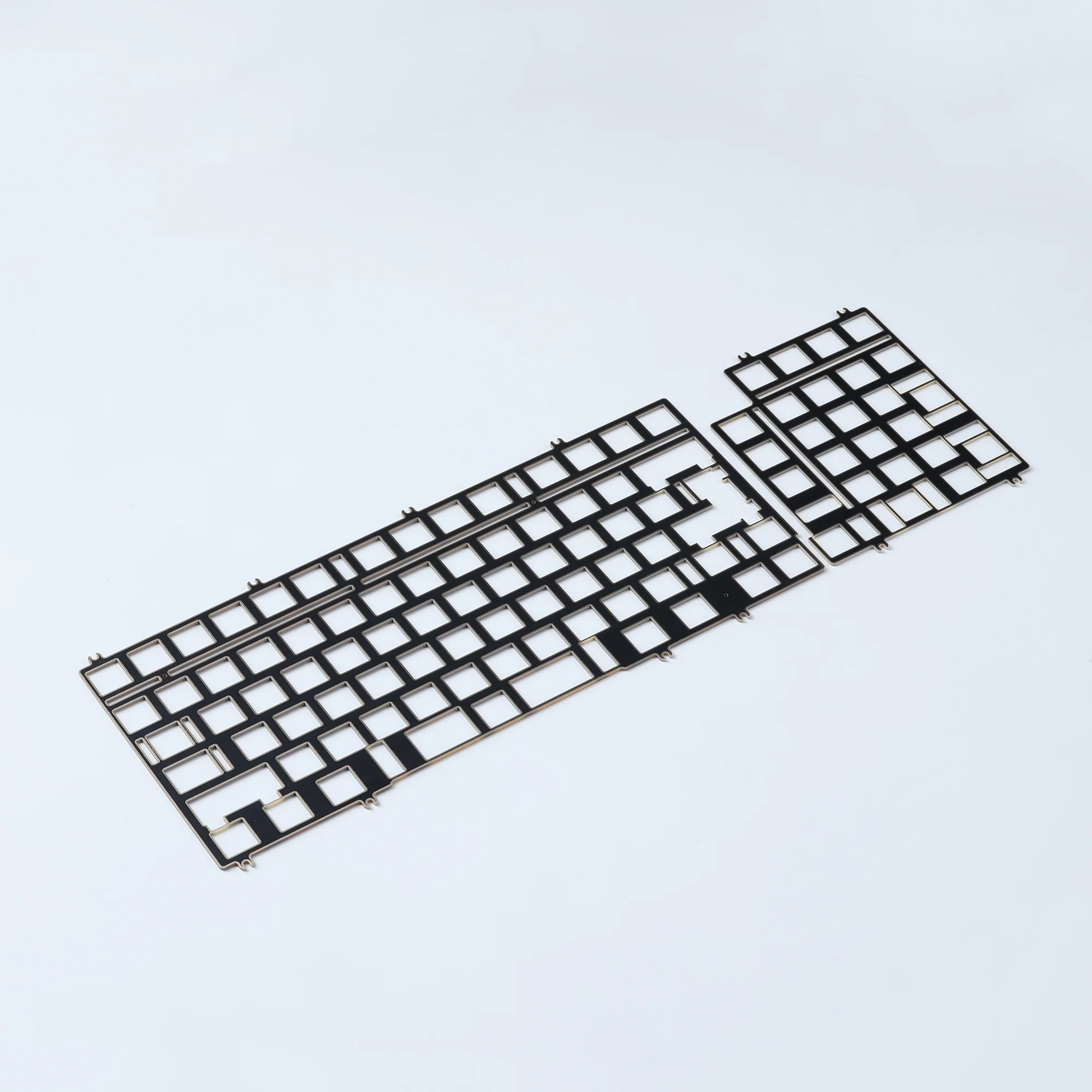

  • Plate: Alu/FR4/PC/ Carbon fiber Plate
  • Typing angle: 9 degree
  • Cover plate material options: Stainless Steel / Brass / Carbon Fiber
  • \nWeight after built：
    ≈2.5kg with Carbon Fiber cover plate
    ≈3kg with Stainless Steel cover plate\n
  • Designer: Wei
  • Plate file
\n
\n
\n
Firmware：
  • Flash manualydkb_kbdfans_athena1800_via_v3.json (updated on 08/22/2025)
    kbdfans_athena1800_vial_250822_DP8M_1.uf2 (updated on 08/22/2025)
  • Flash manual
\n
\n
\n
\n
What's included:
  • Top and bottom case x1
  • Stainless steel weight bar x1
  • Silicone gasket x1 set
  • Rubber feet x1 set
  • Solder / hotswap PCB x1
  • Daughterboard x1
  • Cover plate x1
  • Foam kit x1
  • Plate x1
  • LCD screen x1
  • Bezel x1
  • RGB grille x1
  • Aluminum pupil x1 set
  • Aluminum iris x1 set
  • Screws x1 set
  • Force break tape x1 set

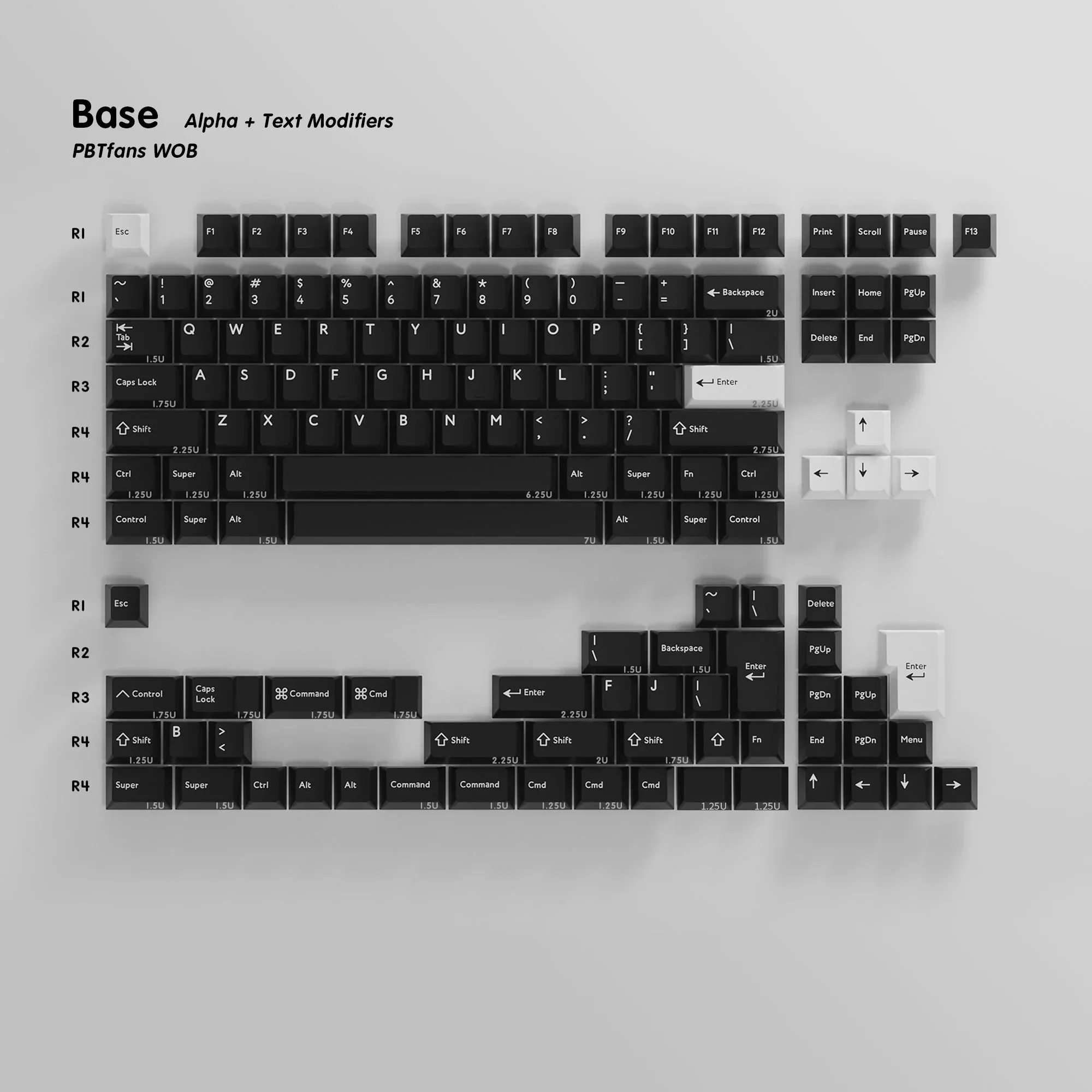

  • PBTfans WOB Base kit（PT04-1）Numpad（PT04-5）
\n
\n
Dimensions

\n
\n
\n
Pictures

\n
\n
\n
\n
\n
Click here for more about Athena 1800
