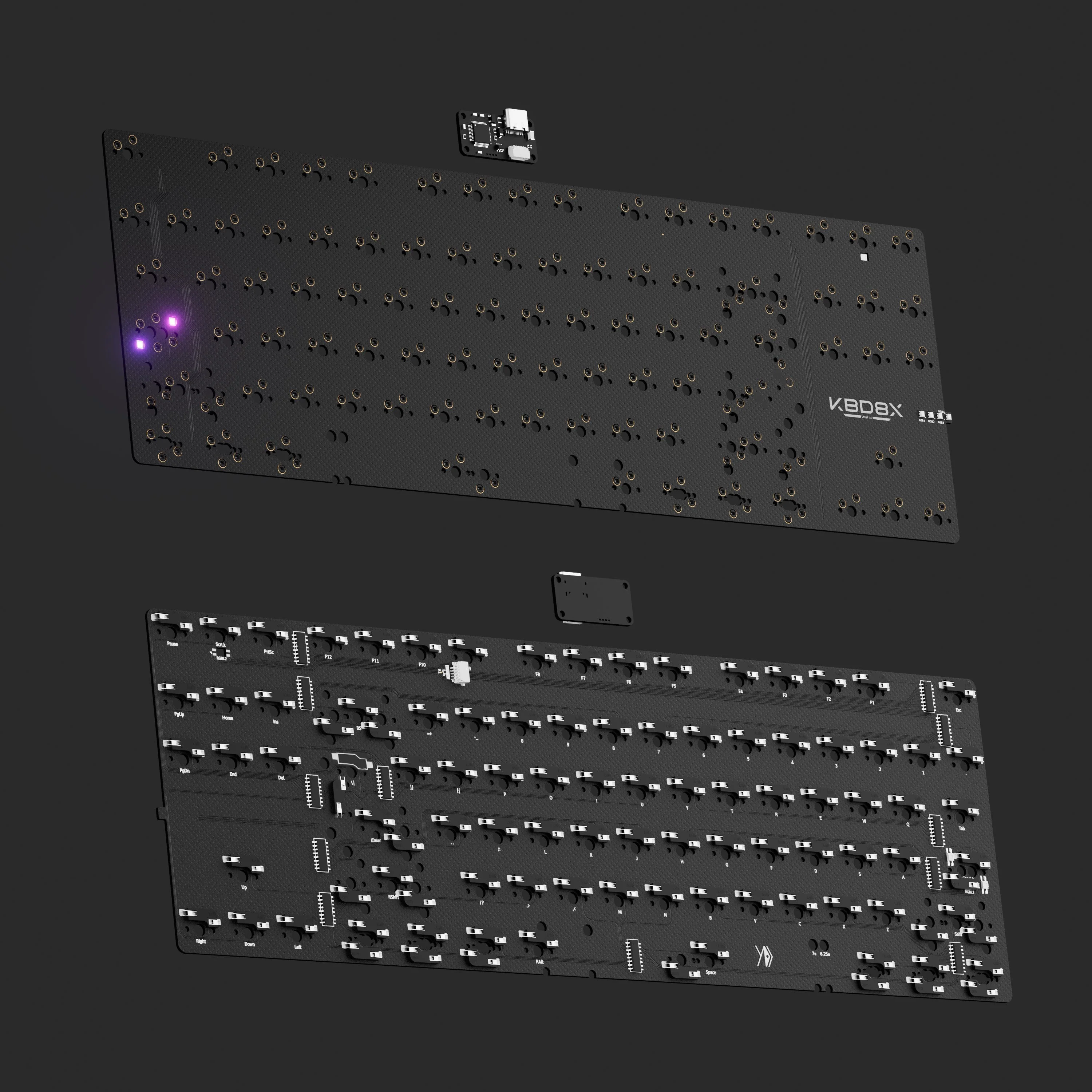

KBD8X MKIII PCB

1 / 3

KBD8X MKIII PCB

Specs

1.2 mm non-flex cut ANSI hot-swap PCB
1.2 mm non-flex cut ISO hot-swap PCB
1.6 mm non-flex cut solder PCB
Main control chip placed on a daughterboard, no per-key RGB, NKRO, USB-C interface, QMK/VIAL supported, includes Caps Lock key /Scroll Lock key RGB LED indicator

Note: KBD8X MKIII PCBs are only compatible with KBD8X MKIII.

Firmware

Flash manual
ydkb_kbdfans_kbd8xmk3_vial.uf2
ydkb_kbdfans_kbd8xmk3_via.json
Download latest VIA firmware from https://ydkb.io/help/?www#/other-firmware/vial (select KBD8x Mk3)

Include

PCB x1
Daughterboard x1
JST cable x1

Layout

Stepped Caps Lock, Split Backspace, Split Lshift and Rshift, ISO Enter, 7u/6.25u spacebar in the bottom rowMoreover, the Caps Lock key and Scroll Lock key each supports LED indicator,
most PBTfans keycaps can be compatible with it.

Select Accessories

From $7.04

Original: $20.10

-65%

KBD8X MKIII PCB—

$20.10

$7.04
